Ecologix drives efficiency in Paper & Tissue Mills with advanced DAF systems

Ecologix Environmental Systems, a company specialized in industrial wastewater treatment solutions, has developed dissolved air flotation (DAF) systems designed to transform operational efficiency in the paper sector. With a focus on technological innovation, the company positions itself as a leader in process design that not only meets the most demanding environmental regulations but also helps plants reduce costs and maximize water reuse.

MAXIMIZING MILL EFFICIENCY: WHY ENHANCED DAF SYSTEMS ARE THE PREMIER CHOICE

In any industrial wastewater treatment system, the effective removal of suspended solids is the cornerstone of success, profoundly impacting both operational efficiency and environmental compliance. In the primary treatment stage of a pulp and paper mill, removing these solids (primarily fibers, fillers, and other particulate matter) is crucial for several reasons. It protects downstream equipment from abrasion and fouling, significantly reduces the organic load (BOD and COD) that must be managed by more energy-intensive secondary processes, and is the first essential step toward any meaningful water reuse initiative.

The role of solids separation is equally critical, though functionally different, in secondary biological treatment. Here, the objective is not to remove raw influent solids, but to separate the purified water from the microbial biomass (activated sludge) that has consumed the dissolved pollutants. This separation is the final, vital step that determines the quality of the discharged effluent. An efficient secondary clarification process ensures that this valuable biomass is captured and returned to the aeration basin to continue its work, while guaranteeing that the final effluent is clear and meets stringent regulatory limits for Total Suspended Solids (TSS). A failure at this stage invalidates the entire biological process, leading to non-compliance and environmental harm.

ADVANCED ENGINEERING FOR SUPERIOR PRIMARY TREATMENT

With this understanding, it becomes clear that the choice of solids separation technology is paramount. While facilities have long relied on large traveling bridge clarifiers, these aging systems are inefficient and costly to operate. The move to Dissolved Air Flotation (DAF) technology marks a significant step forward, but the true revolution lies in advanced DAF designs.

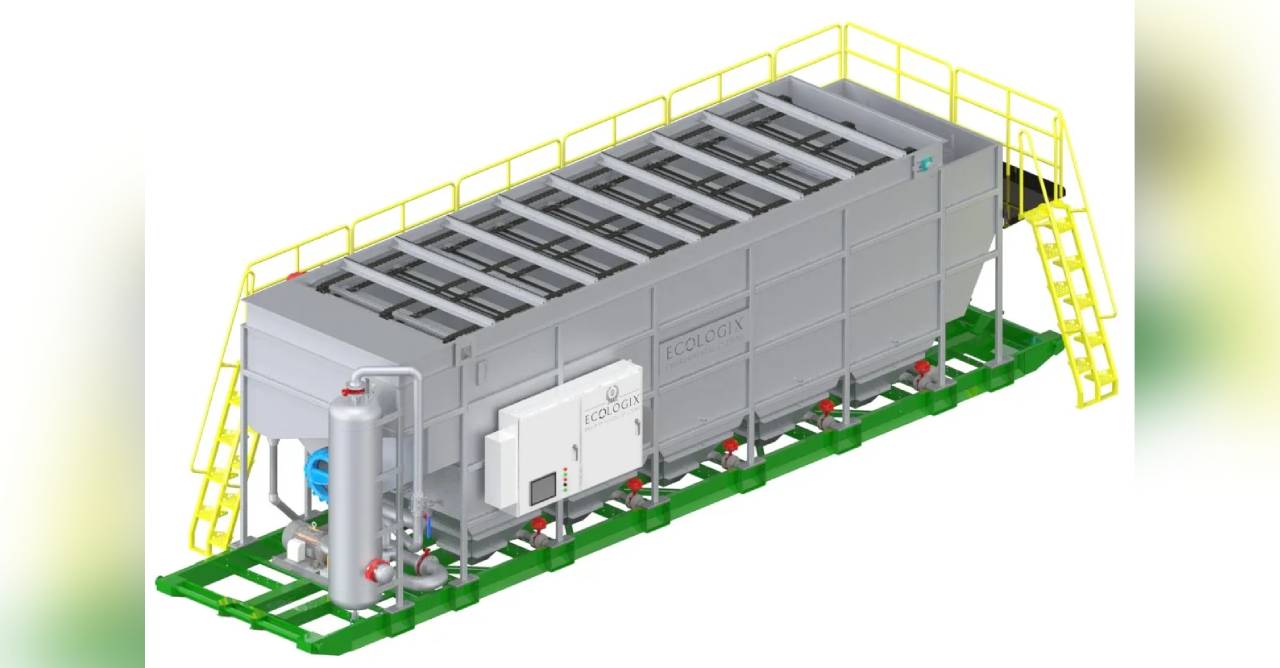

Ecologix has engineered enhanced DAF systems that not only replace clarifiers but fundamentally optimize the entire wastewater treatment process. The effectiveness of a DAF system hinges on its ability to generate microscopic bubbles that attach to suspended solids and lift them to the surface. Enhanced systems perfect this core function. Ecologix, for example, utilizes a high-efficiency air dissolving system that creates a greater volume of finer micro-bubbles. This optimized bubble population, combined with specialized flotation zones, ensures maximum contact between air and solids. This is especially crucial for the low-density fibers in paper mill effluent, leading to superior TSS removal rates that often exceed what standard DAF technology can achieve, resulting in exceptionally clear effluent.



REDEFINING FOOTPRINT AND HYDRAULIC CAPACITY

A key driver for replacing clarifiers is space savings, and this is where enhanced dissolved air flotation systems truly excel. Through intelligent hydraulic design and optimized internal flow patterns, advanced systems can handle significantly higher hydraulic and solids loading rates. This means a state-of-the-art system from Ecologix can process more wastewater in a smaller footprint than a conventional DAF system, let alone a sprawling concrete clarifier. This unlocks valuable plant space for production upgrades and makes retrofitting easier than ever.

MAXIMIZING SLUDGE QUALITY TO MINIMIZE DISPOSAL COSTS

Sludge handling and disposal represent a major operational expense. While any DAF system produces thicker sludge than a clarifier, enhanced systems take it further. They often incorporate features such as internal coalescing media, sludge thickening plates, and variable-speed skimmers. This design provides a thicker floated sludge before it leaves the tank, producing a higher solids concentration cake, often achieving 4–6% solids directly from the unit. This reduction in water content decreases the burden on downstream equipment, cuts polymer use, and generates a smaller volume of final sludge for disposal.

UNLOCKING EFFICIENCY WITH INTELLIGENT AUTOMATION

Modern paper mills rely on data and automation, and their wastewater systems should too. Ecologix systems are equipped with advanced PLC controls and sensor feedback loops, allowing for automated chemical dose adjustments based on real-time influent conditions and self-regulating air saturation. This level of smart control minimizes chemical waste, reduces the need for constant operator oversight, and ensures consistently compliant effluent even with fluctuating production schedules.

FORTIFYING BIOLOGICAL SYSTEMS AGAINST UPSETS

In secondary treatment, a DAF system’s ability to float biological solids is a game-changer for plants struggling with filamentous sludge bulking in conventional clarifiers. An enhanced DAF system provides a more robust and reliable solids-liquid separation barrier. Its superior solids capture efficiency offers unmatched protection against process upsets, preventing solids carryover and safeguarding final effluent quality.

THE COMPOUNDED ROI OF AN ENHANCED SYSTEM

The decision to upgrade is ultimately an economic one. Enhanced DAF systems from Ecologix deliver a powerful return on investment by compounding benefits across the board. Savings come not only from a smaller footprint and advanced automation but also from maximized fiber recovery, reduced chemical and polymer use, and drastically lower sludge handling and disposal fees. These amplified operational savings, coupled with improved water quality that facilitates internal reuse, create a strong business case for choosing Ecologix’s technologically advanced systems.
